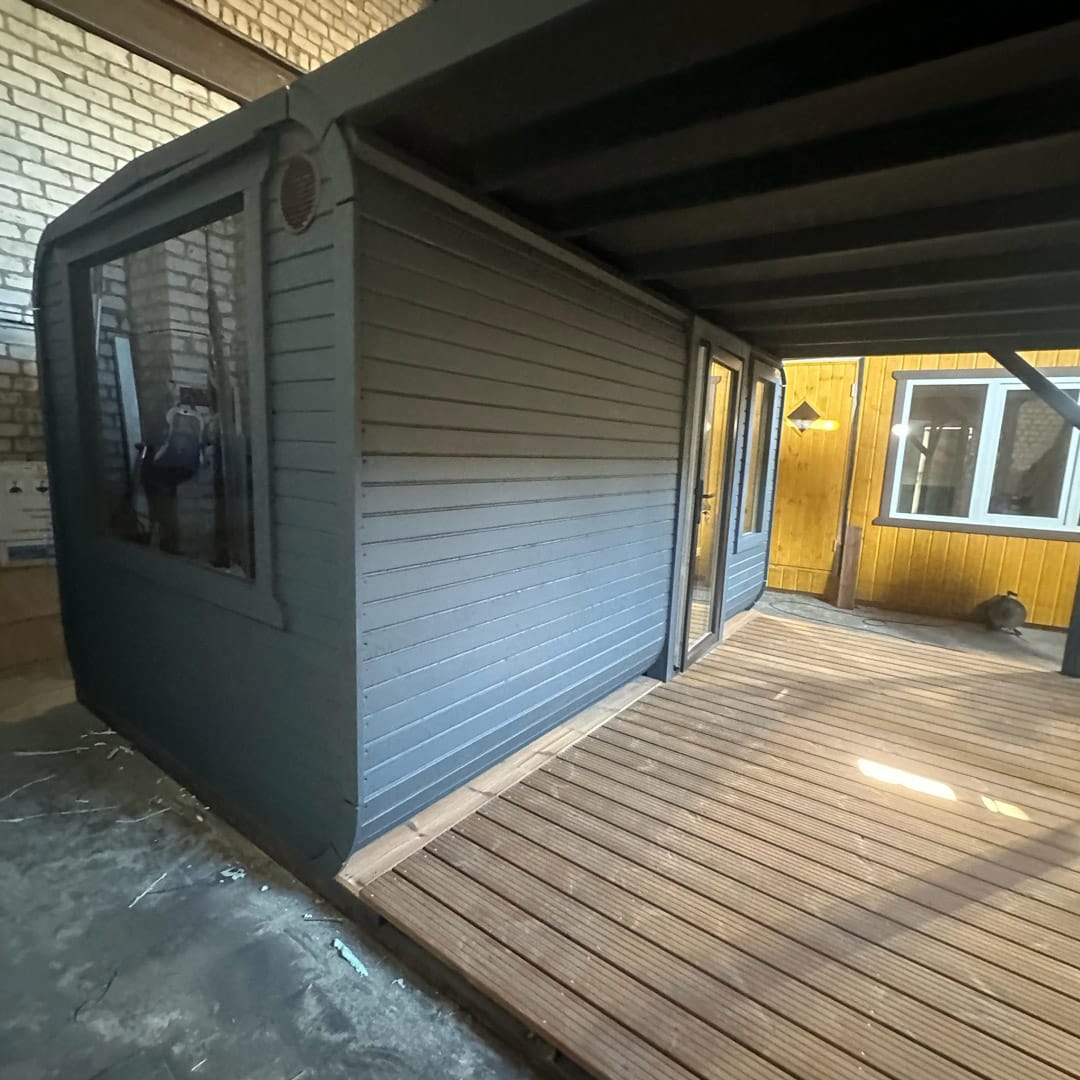

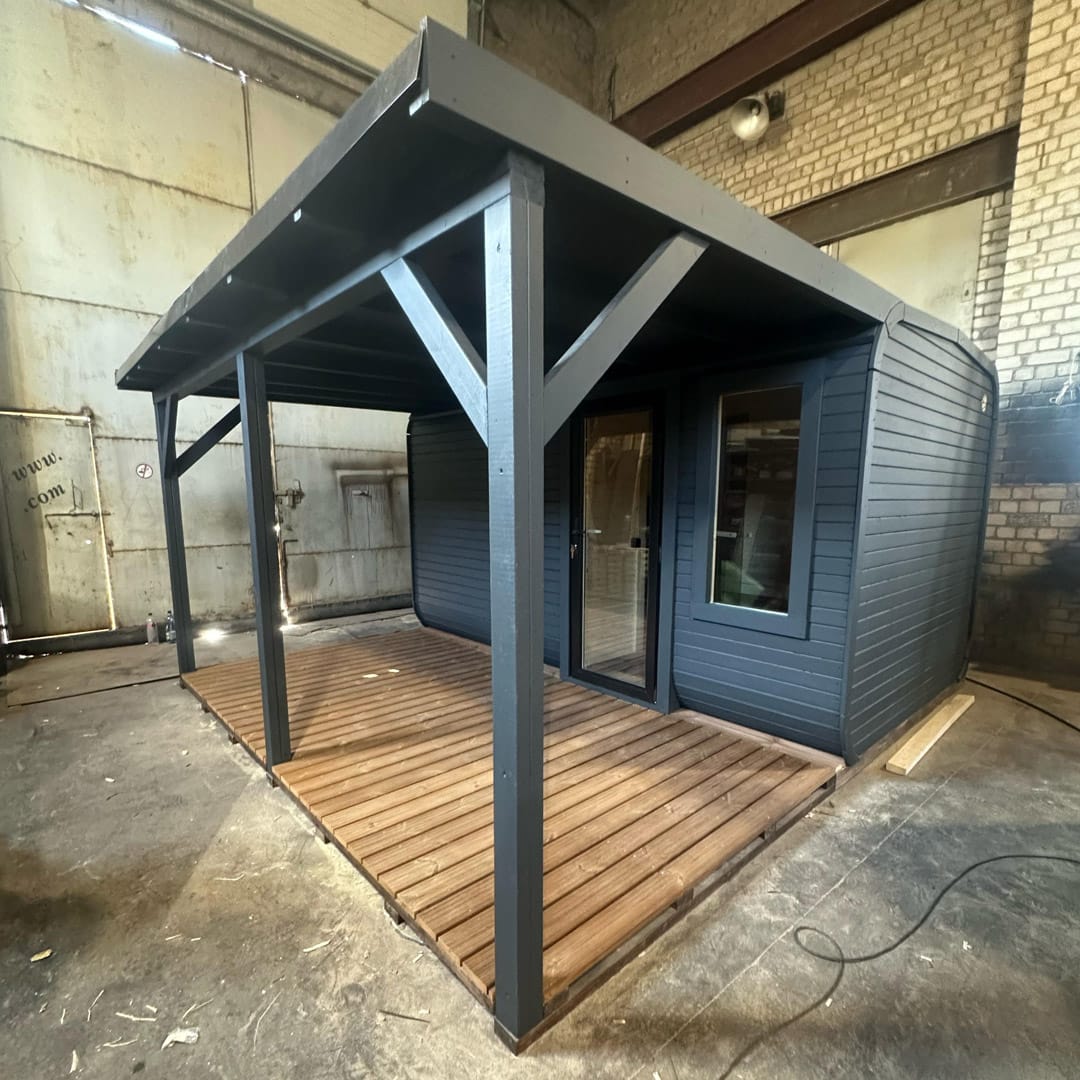

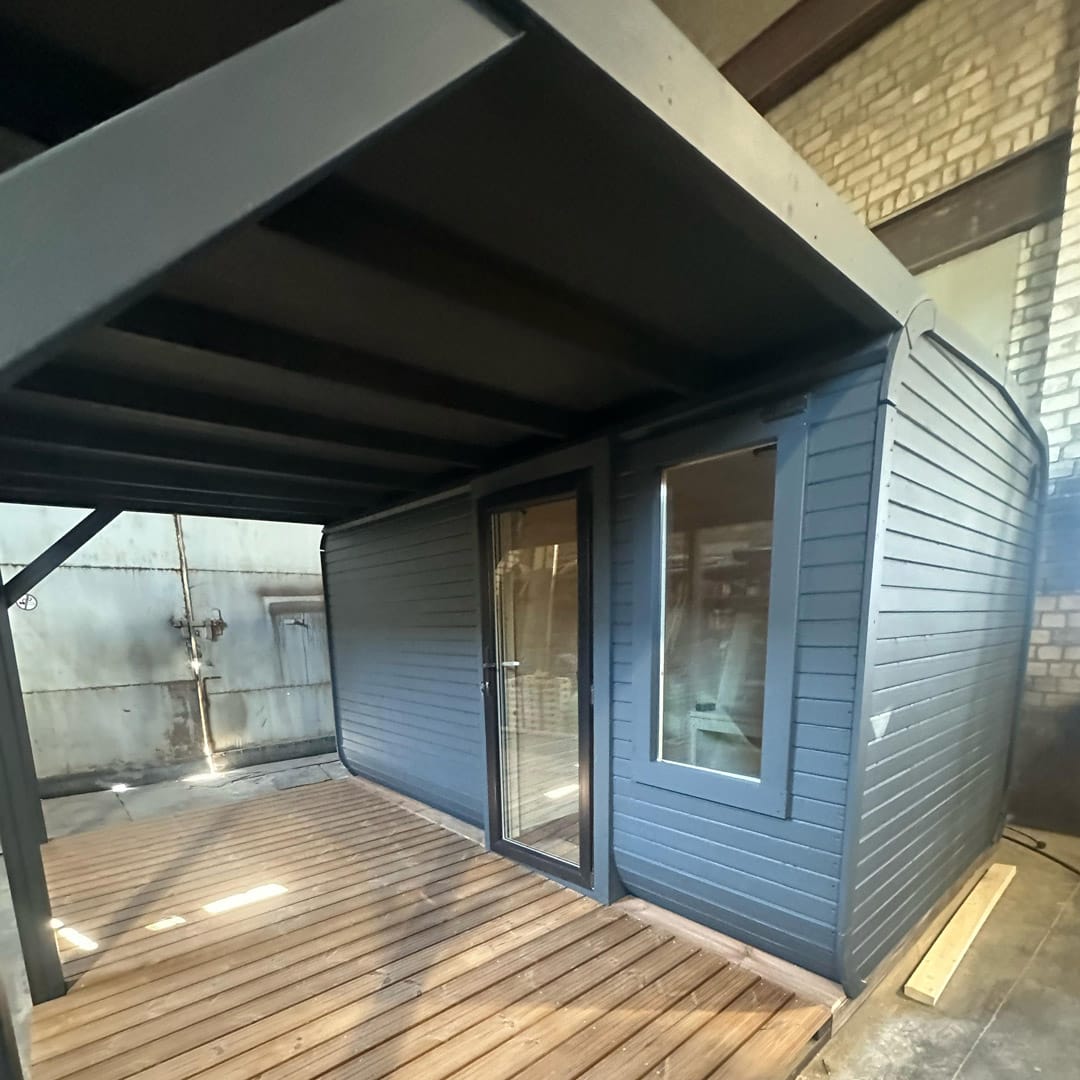

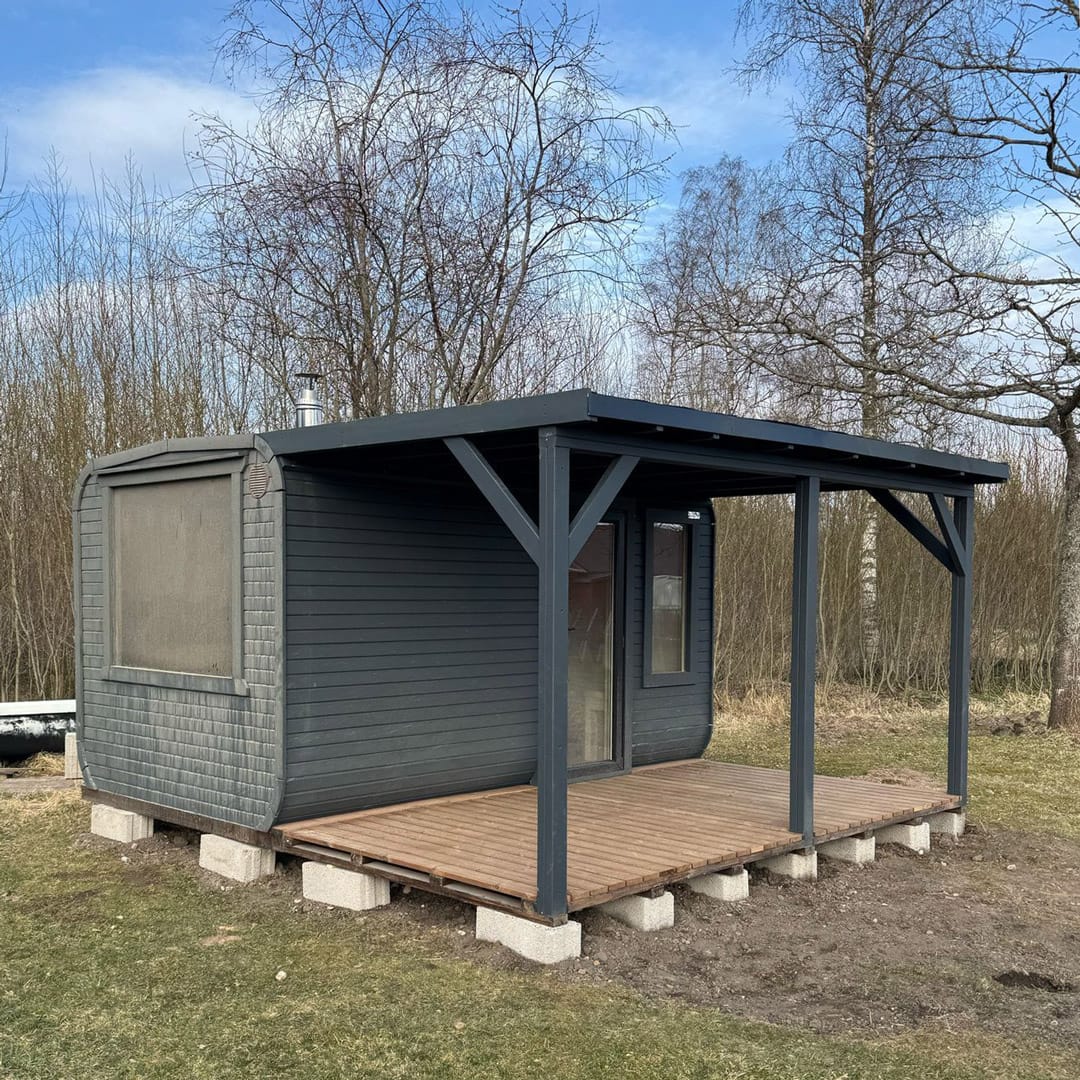

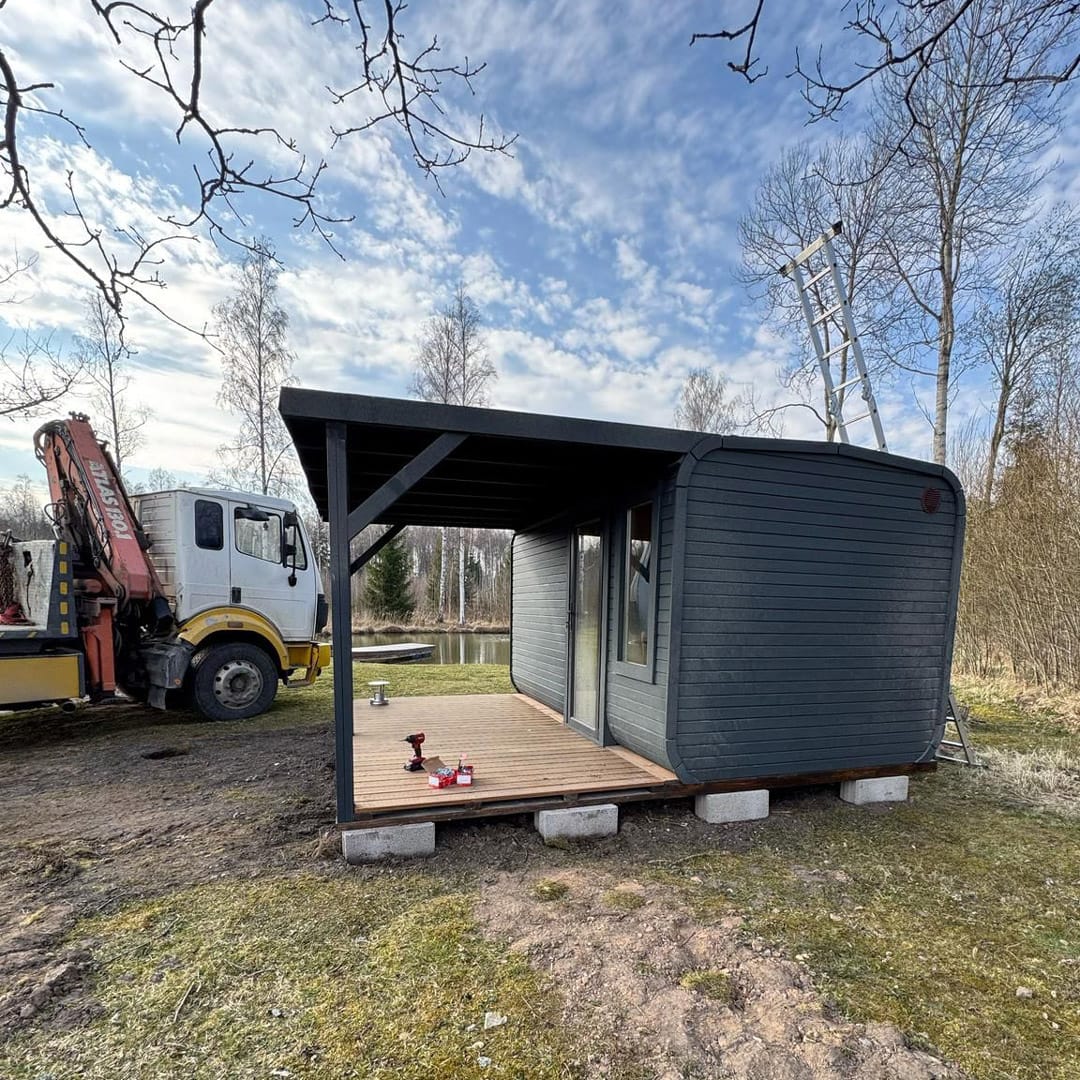

Quadro sauna with terrace, 4m

Overall dimensions of the quadro sauna with anteroom and terrace: building total building length 4m x width 2.4m x height 2.4m. Terrace: length 4m x width 2m.

• sauna room dimensions: 2×2.4m;
• the sauna room is designed for up to 8 people;
• 18 m³ wood-burning sauna stove (can be fired with wood or briquettes);
• firebox for a wood-burning stove accessible from outside the sauna;
• a hot water tank above the stove, 45 liters (provides warm water when heating the sauna);
• thermowood sauna benches with thermowood backrests for comfortable seating;
• footrests beneath the benches;
• benches arranged in a U-shaped design;
• the sauna room has one tempered glass window (dimensions: 1.48×1.20m);
• special sauna window, 30x30cm, openable;
• adjustable air supply in the sauna (1 ventilation hatch);
• the sauna room is equipped with 1 sauna lamp;
• LED strips under the sauna benches with 7-color changing modes and various lighting effects;
• straight floor – made from terrace boards waxed with oil;
• frosted tempered bronze glass door to the sauna room;
• with a water drainage trap;
• water pipes with outlets to the building’s foundation.

Anteroom specifications:

• anteroom dimensions: 2×2.4m;
• the anteroom is equipped with lighting (1 lamp);
• electrical installation: 1 double socket;
• adjustable air supply in the room (1 ventilation hatch);
• lockable PVC exterior door with glass (option for PVC door without glass at no extra cost);
• double-glazed window (dimensions: 0.60x1m; non-opening);
• the anteroom is equipped with two benches for added comfort and convenience;
• calibrated, planed spruce boards, 45 x 95mm, C24 grade, are used for the finish;
• straight floor – made from terrace boards waxed with oil;
• black finish (colors can be chosen; the most popular colors: are black, brown, and gray);
• Bitumen shingle roof covering (with thermal insulation and foil under the roof);
• insulated chimney with a damper and cap.

Terrace specification:

• dimensions: 4x2m;
• made of thermowood boards.

Notes!

LWDcnc quadro saunas are manufactured without hoops. However, if the customer wishes, we can add decorative hoops.
Furthermore, our saunas are built on a straight foundation, not held together by hoops.
Additionally, there are no issues with adjusting the hoops during seasonal changes.
