Insulated quadro sauna with anteroom, 4m

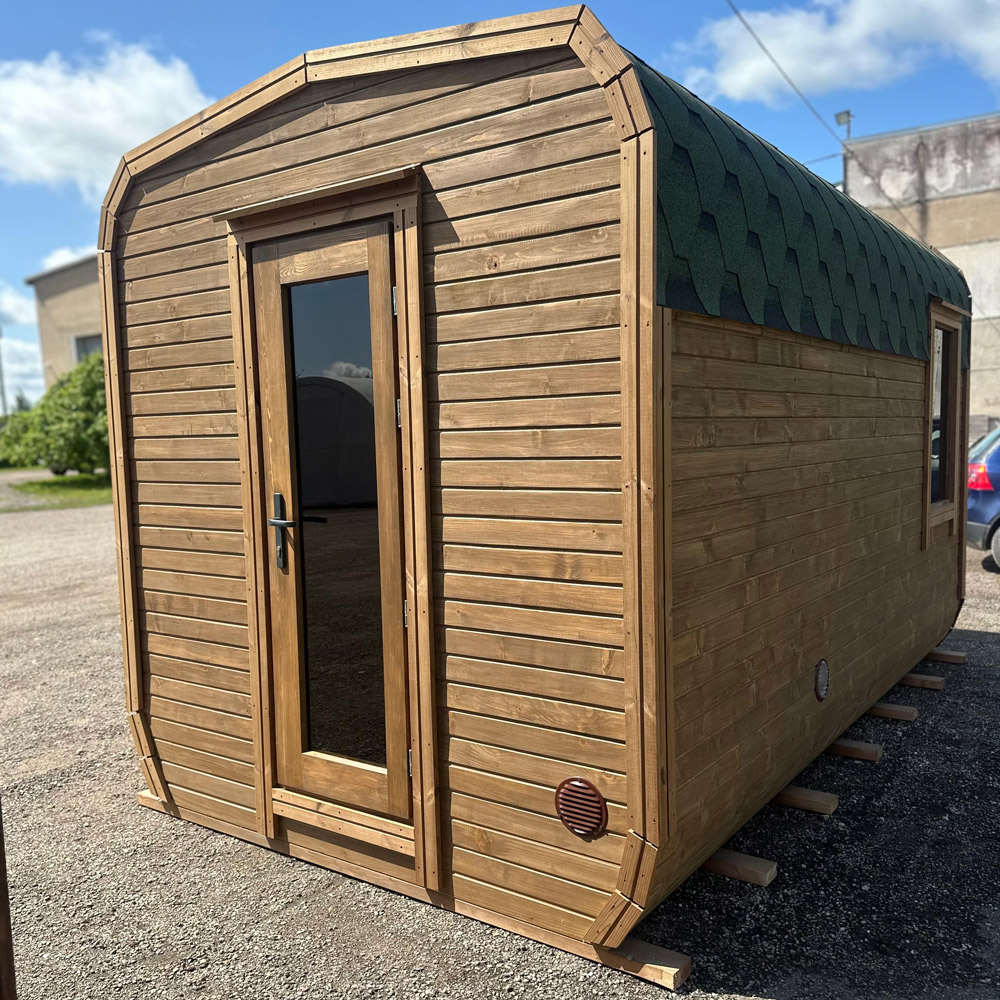

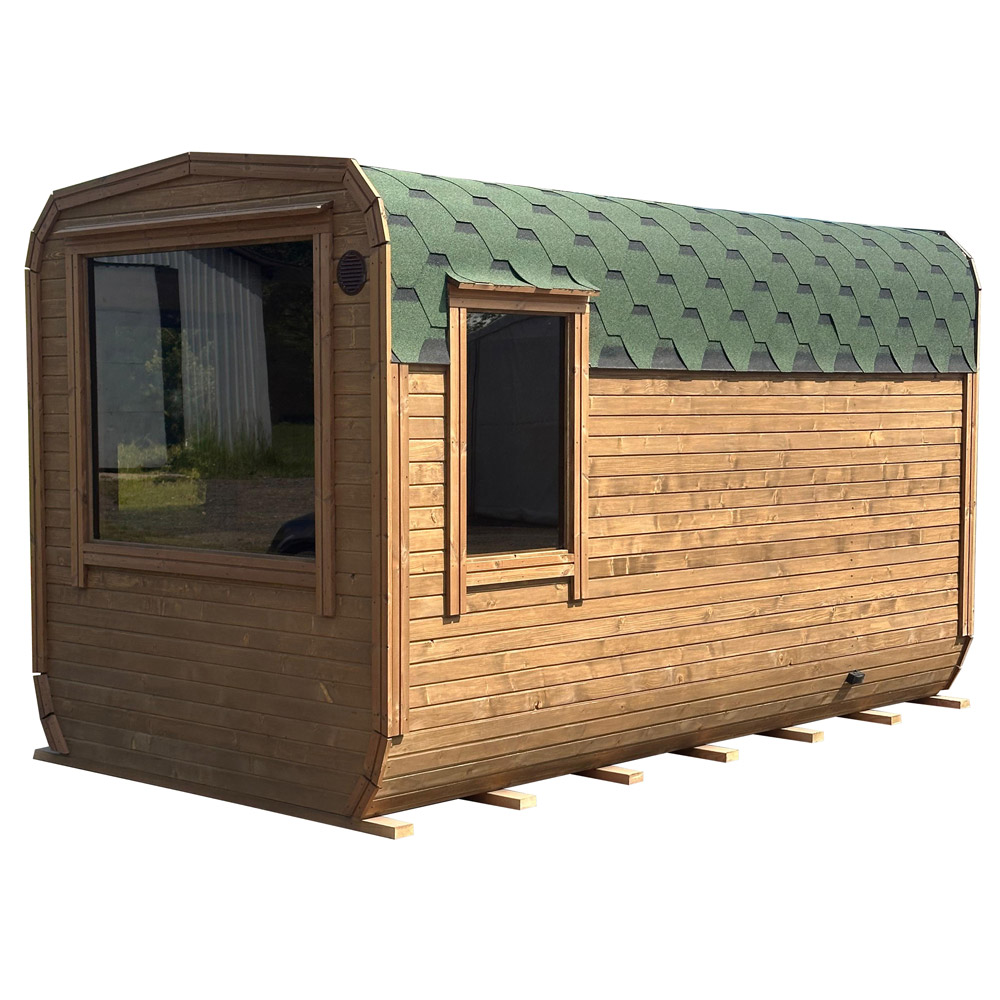

Overall dimensions of the insulated quadro sauna with anteroom: total building length 4m x width 2.4m x height 2.4m.

Sauna building specifications:

• insulated ceiling: 150mm;
• thermowood ceiling throughout the building;
• insulated floor: 150mm;

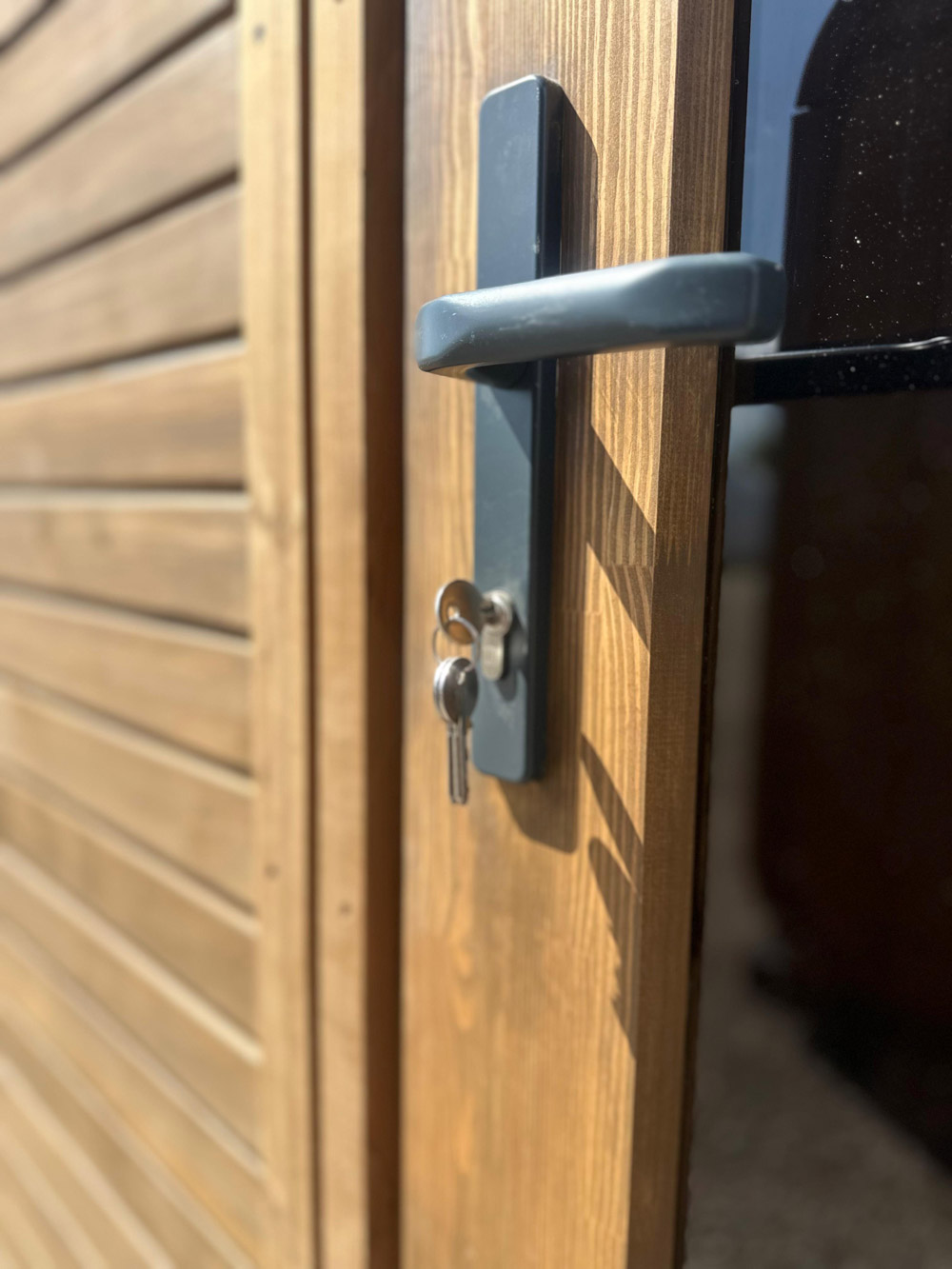

• lockable wooden exterior door with glass (option for PVC door at no extra cost);
• calibrated, planed spruce boards (45 x 95mm, C24 grade) used for the finishing;
• brown exterior finish (other colours available; most popular: black, brown, grey);

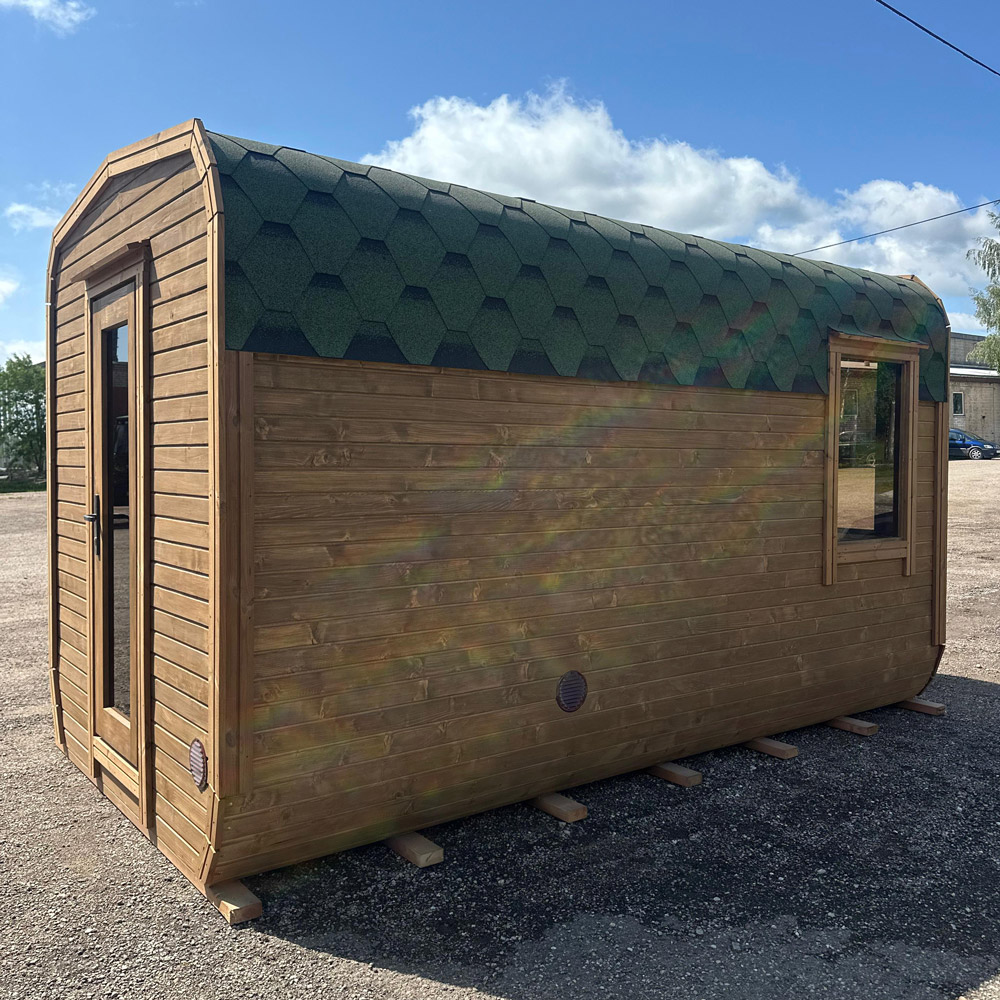

• green bitumen shingle roof with thermal insulation and foil underneath (also available in black or grey).

• sauna room dimensions: 3×2.4m;
• designed for up to 8 people;
• wood-burning sauna stove (can use wood or briquettes);
• choice of wood-burning or electric stove;
• firebox for a wood-burning stove accessible from outside or inside;
• insulated chimney with damper and cap;

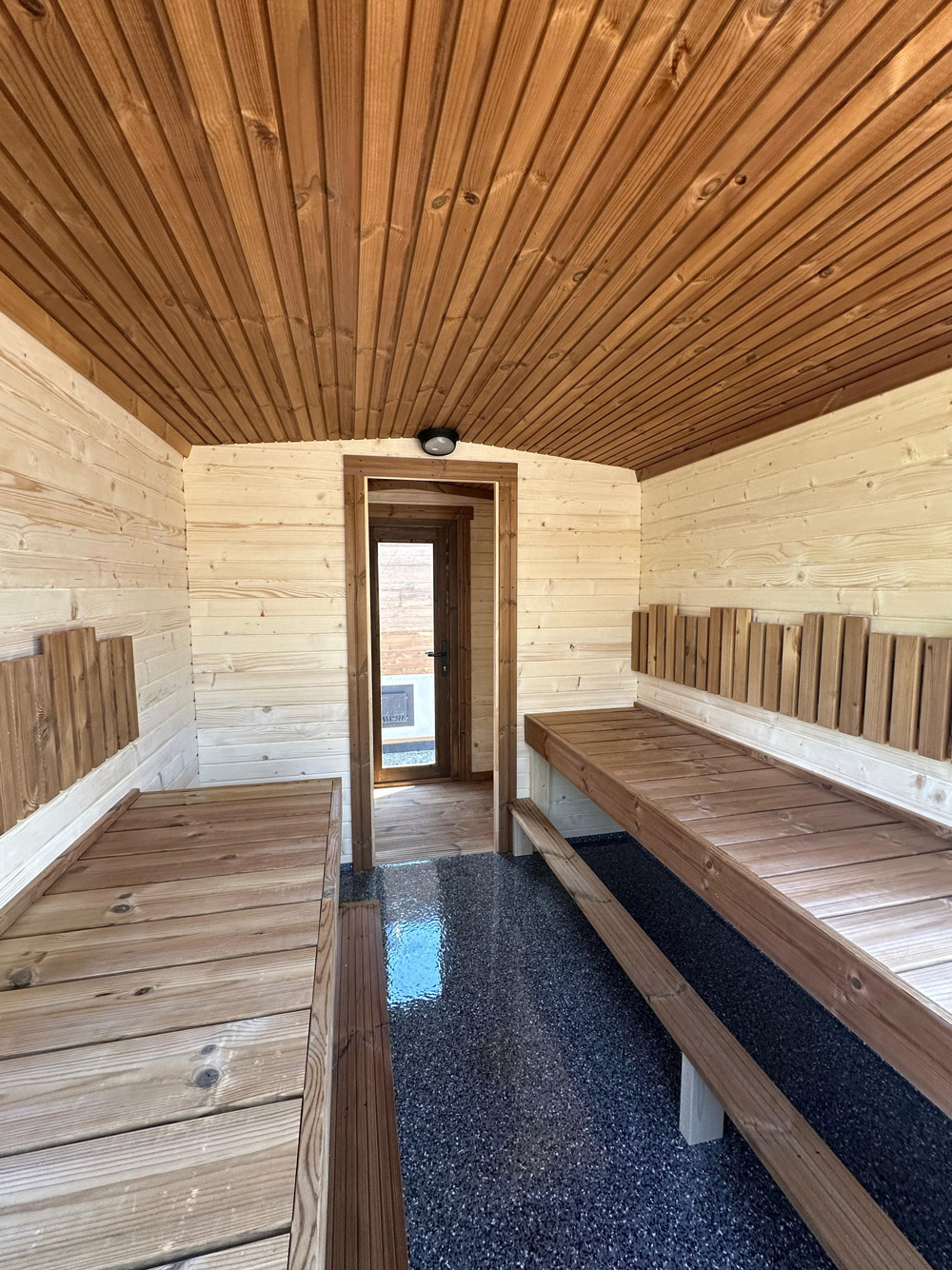

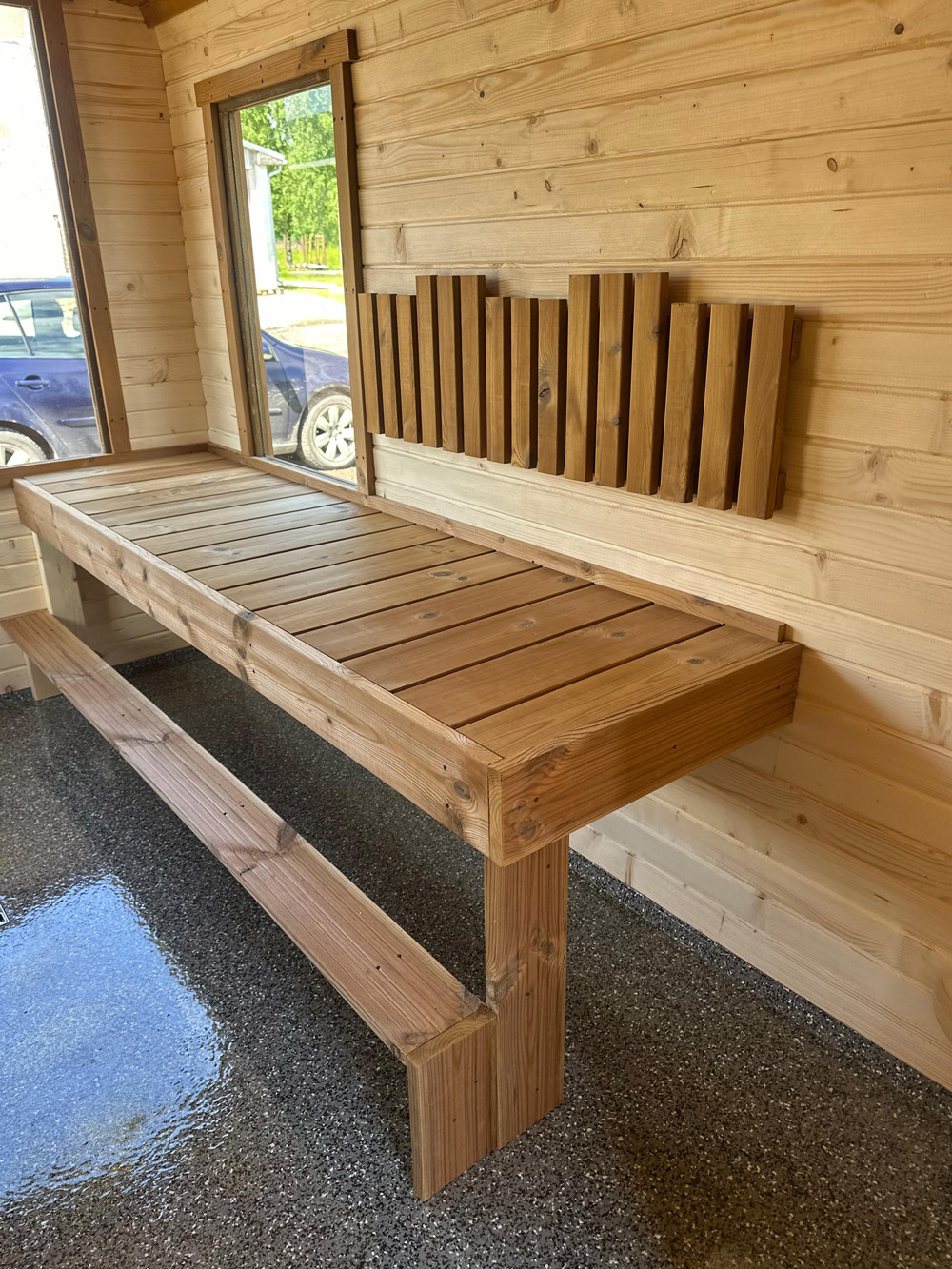

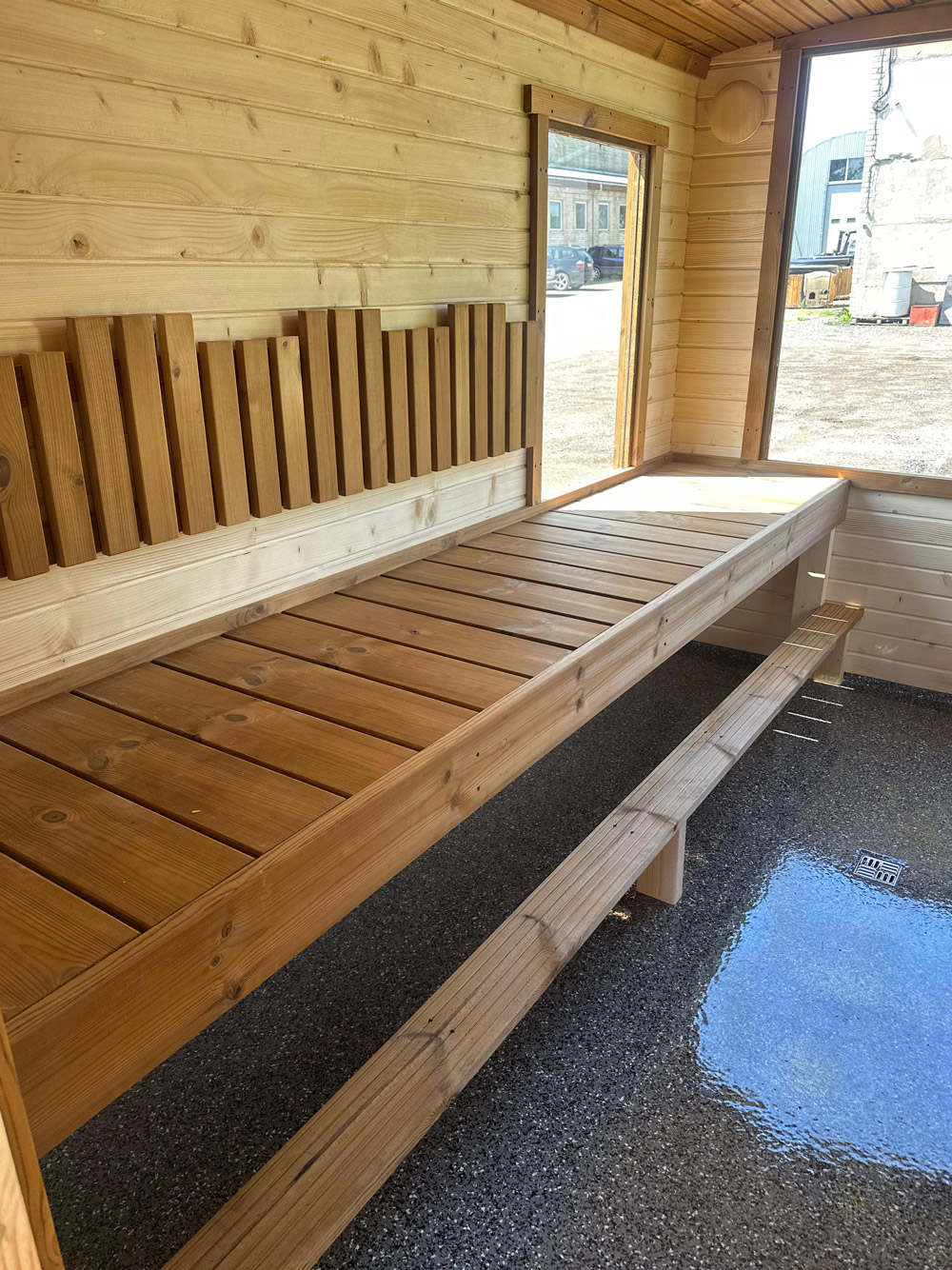

• thermowood sauna benches with thermowood backrests for comfortable seating;
• thermowood footrests beneath benches;

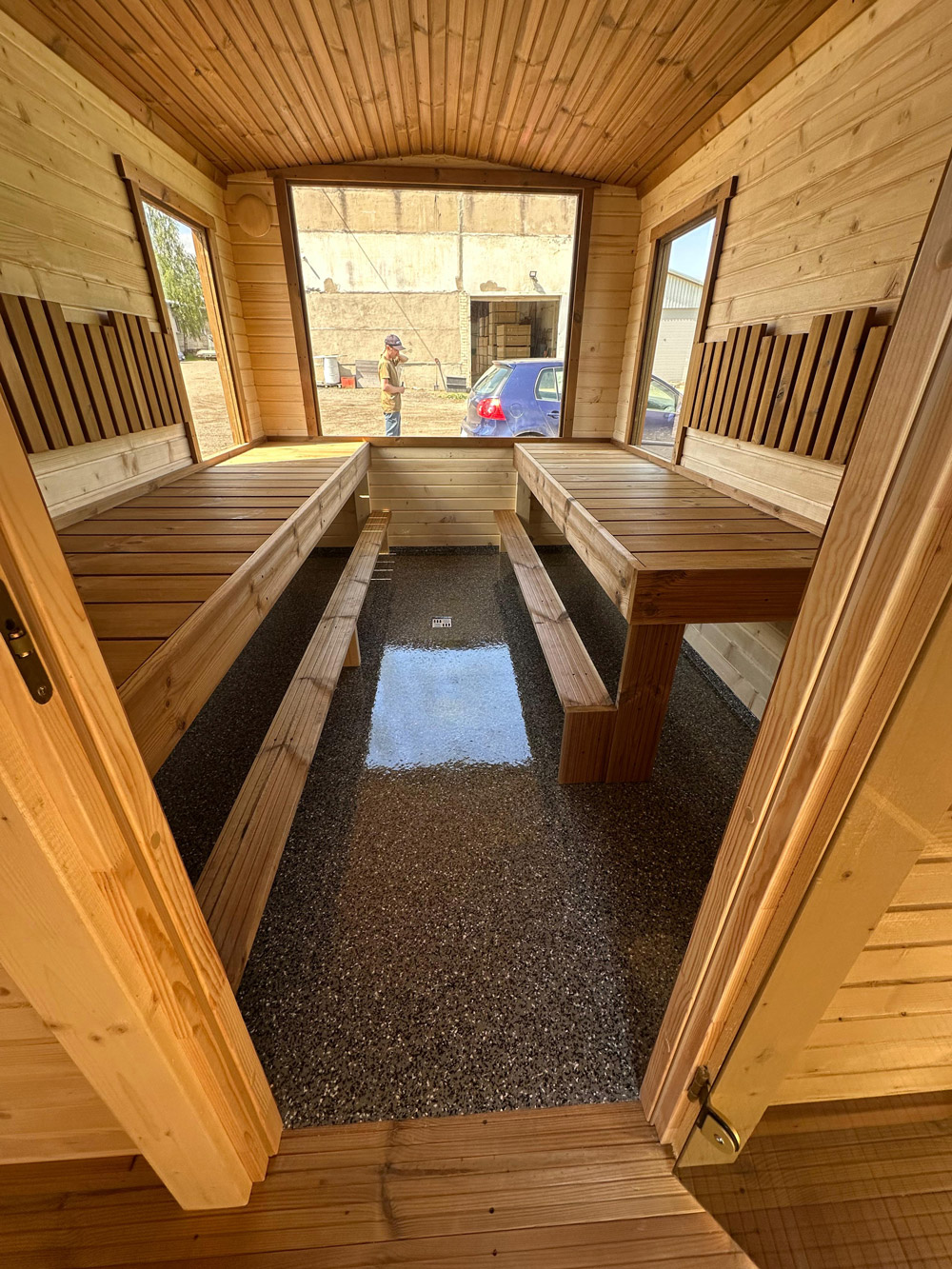

• benches arranged along the walls of the sauna room (U-shaped layout also available);
• 3 tempered glass windows: one at the back (1.19m x 1.48m), two on the sides (0.60m x 0.94m);
• special openable sauna window (30x30cm);
• adjustable air supply in the sauna (2 ventilation hatches);
• one sauna lamp installed;

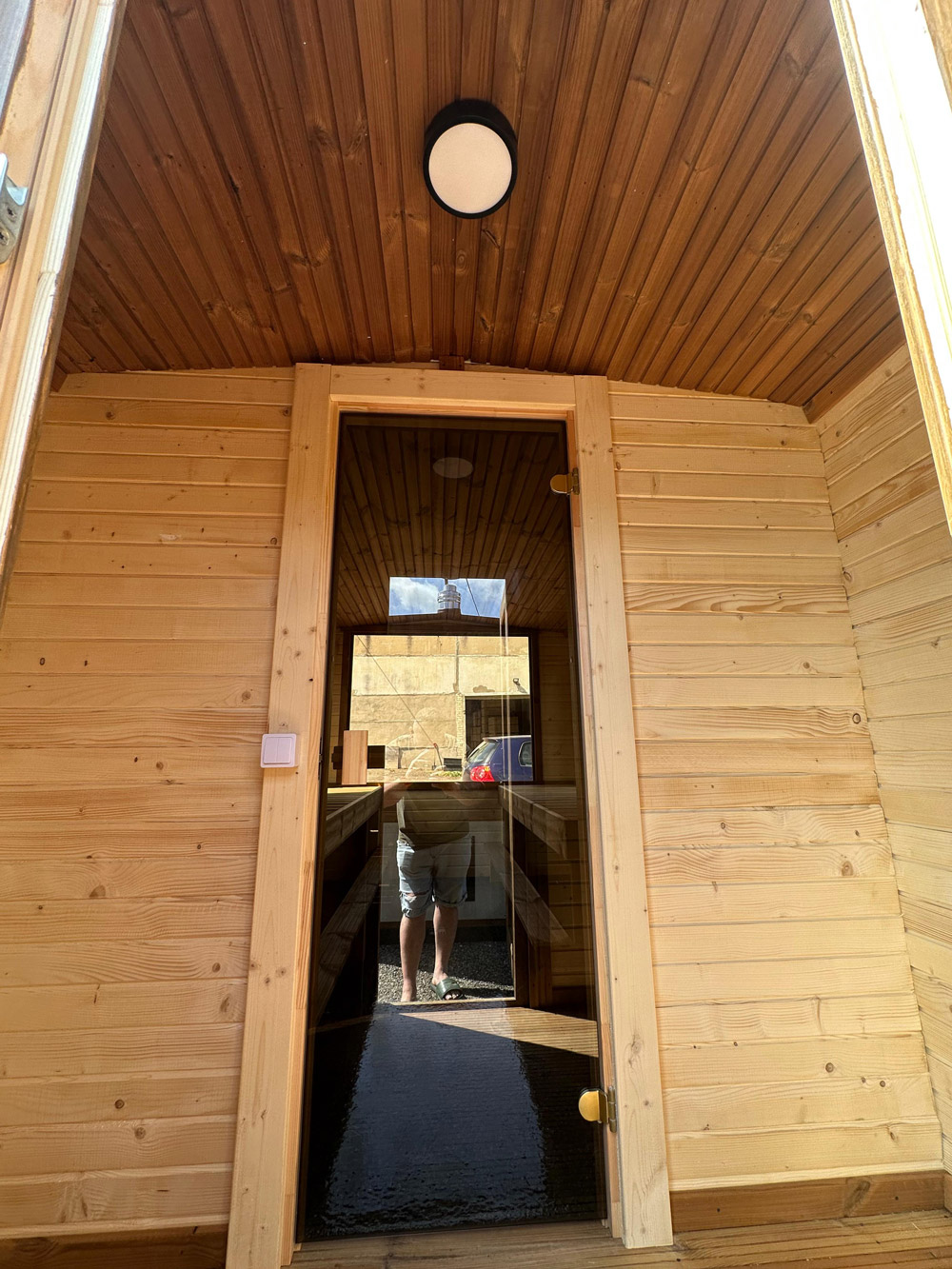

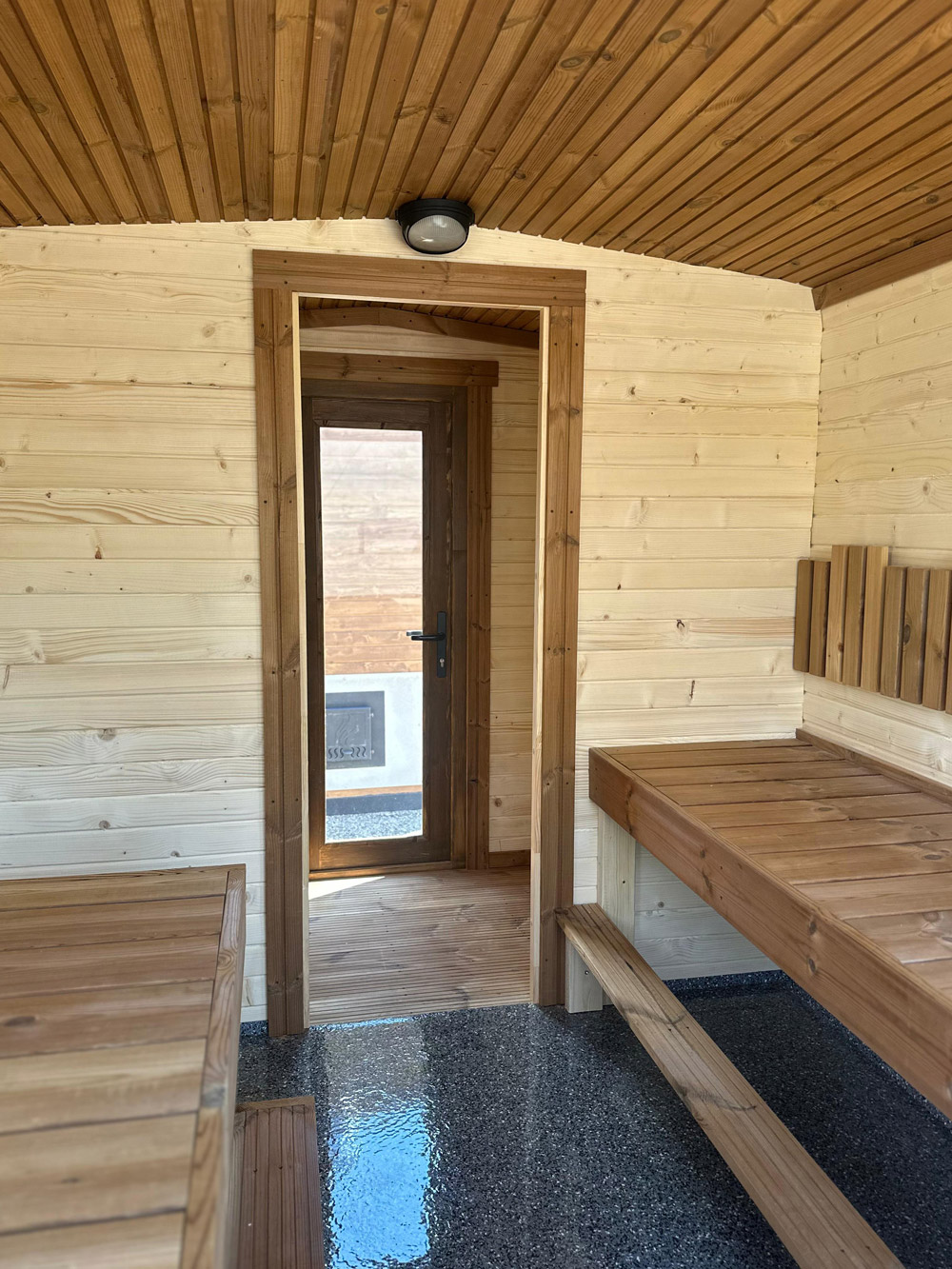

• tempered bronze glass door to the sauna room;

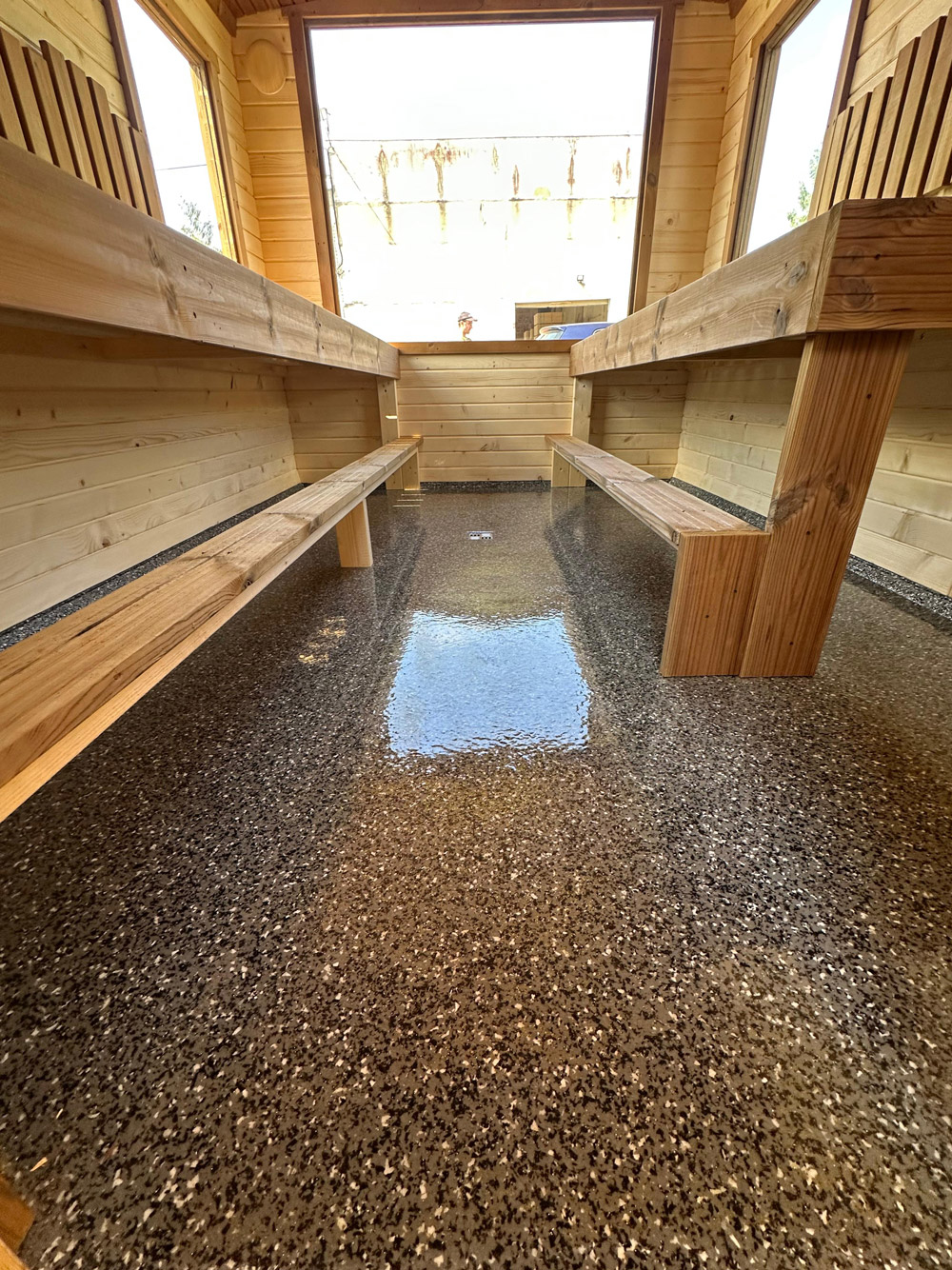

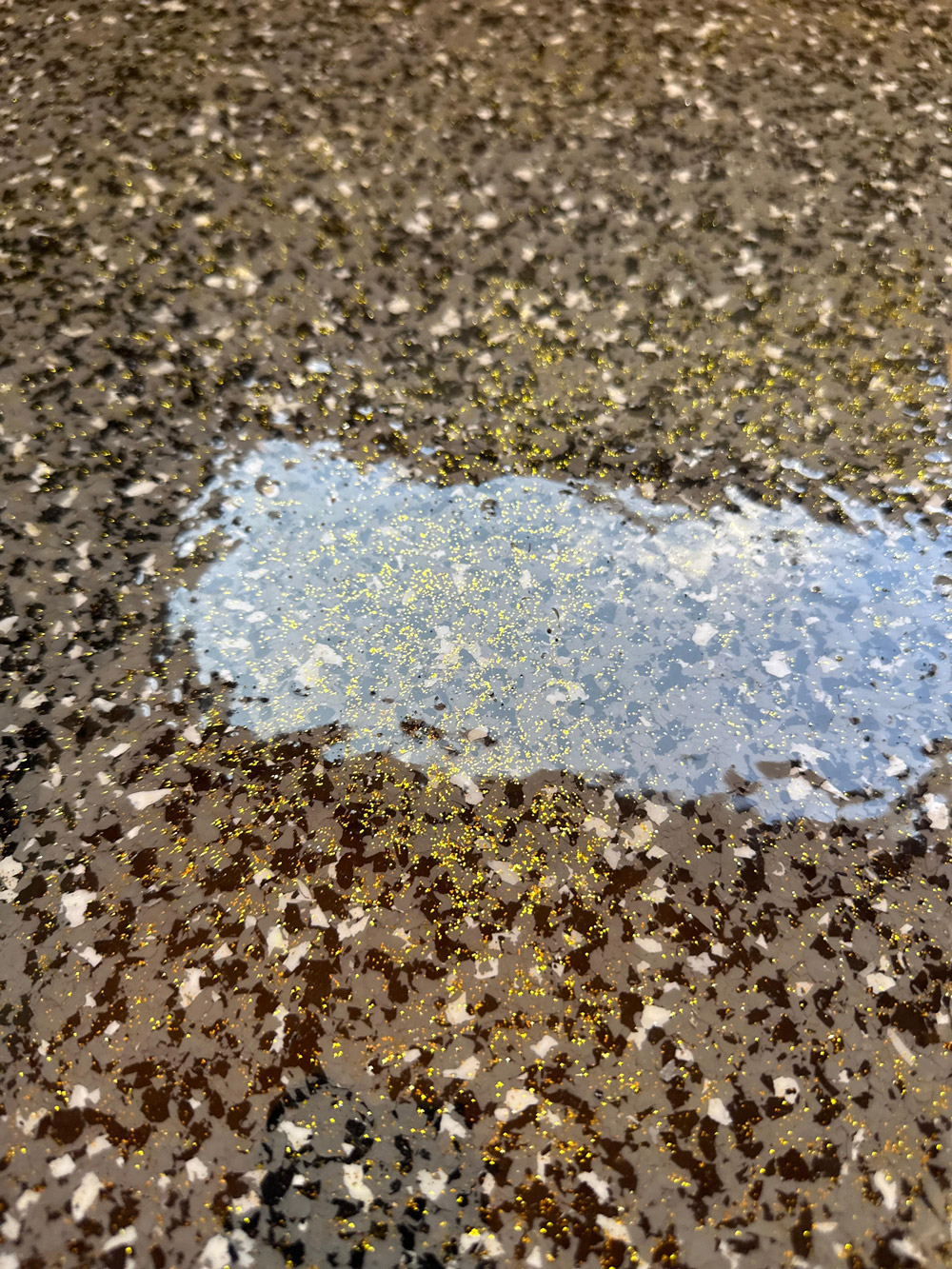

• epoxy-coated floor, water-resistant (prevents water leakage);
• water drainage trap;
• water pipes with outlets to the building’s foundation.

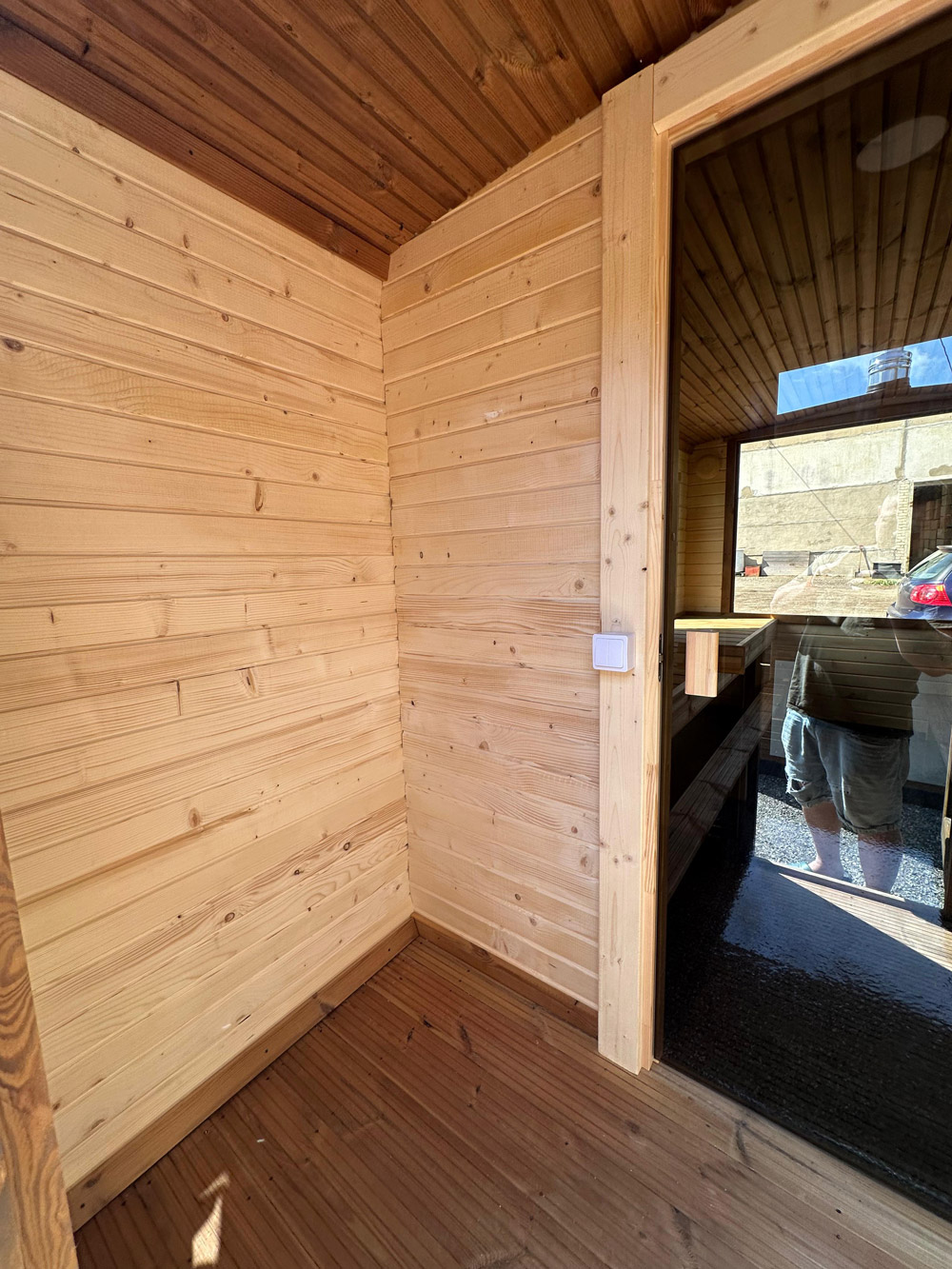

Anteroom specifications:

• anteroom dimensions: 1×2.4m;
• equipped with 1 LED lamp;
• adjustable air supply (1 ventilation hatch);

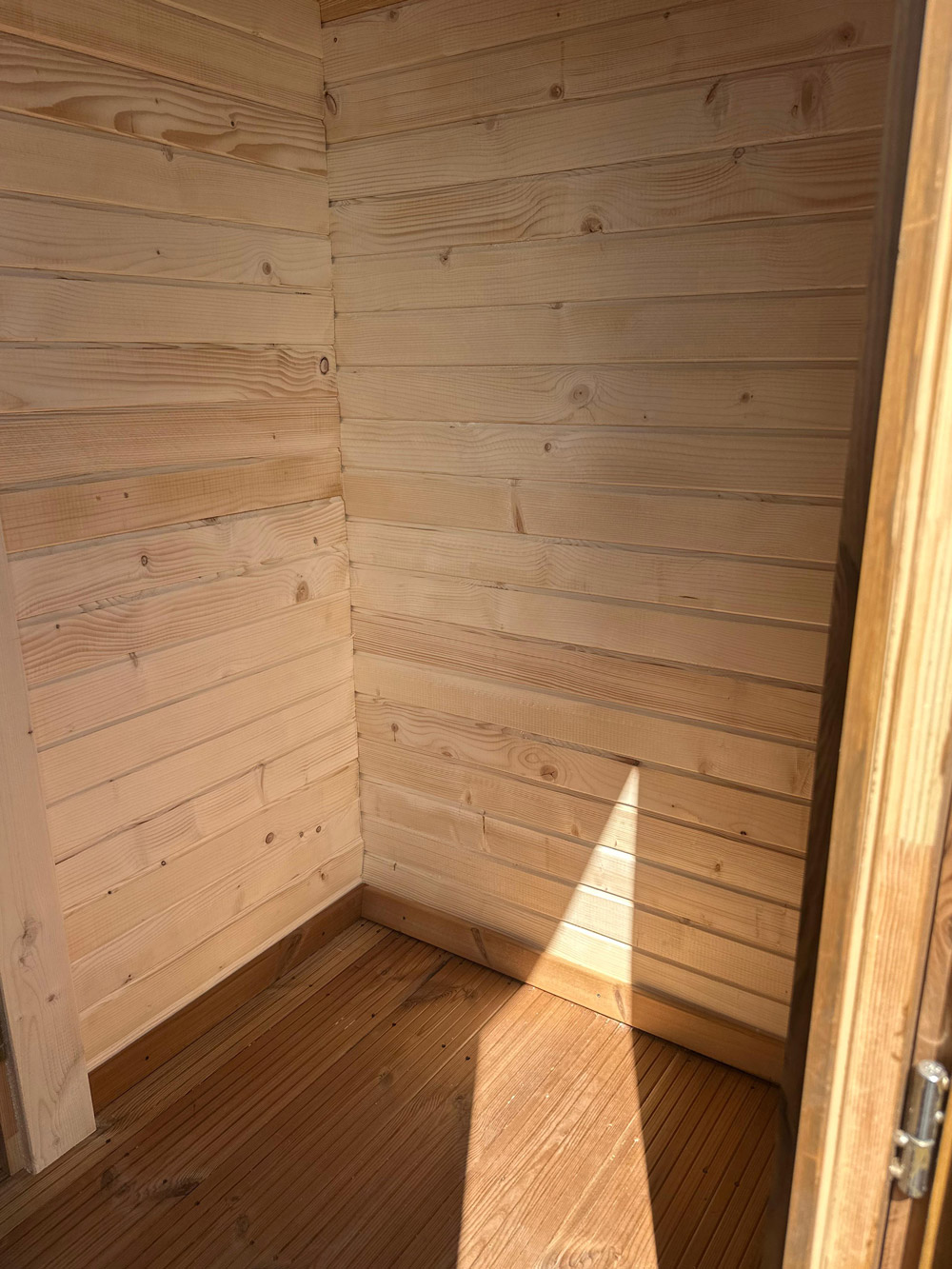

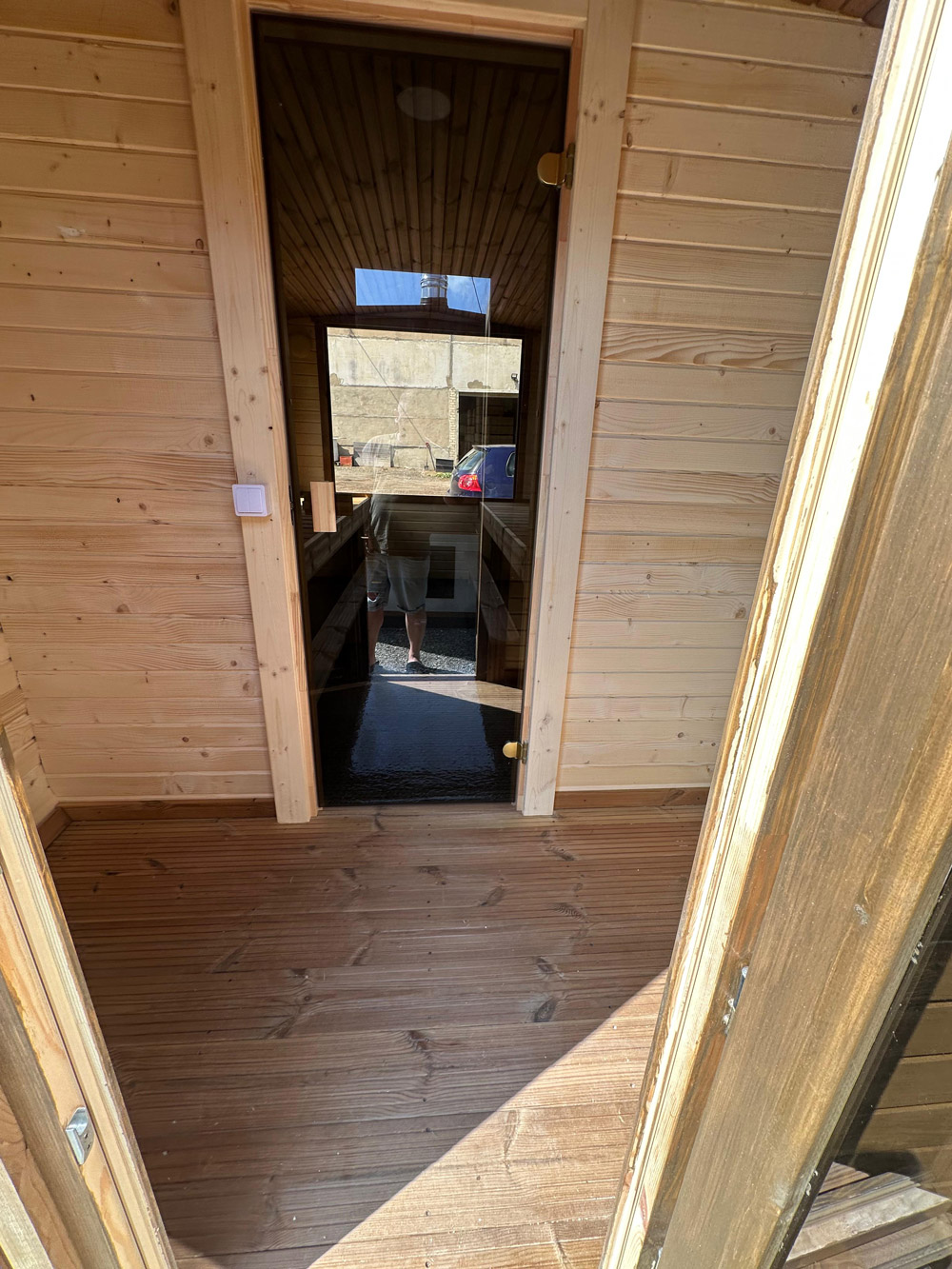

• straight floor made from terrace boards waxed with oil.

ADDITIONAL OPTIONS

When placing an individual order for an insulated quadro sauna, the price and additional customisations can be agreed upon, such as:

1. installation of a quadro sauna on a trailer;
2. installation of LED strip lighting under the sauna benches with 7-color changing modes and various lighting effects;
3. hot water tank above the stove, 45 litres (provides warm water when heating the sauna).

Notes!

LWDcnc quadro saunas are manufactured without hoops. However, if the customer wishes, we can add decorative hoops.
Furthermore, our saunas are built on a straight foundation, not held together by hoops.
Additionally, there are no issues with adjusting the hoops during seasonal changes.
